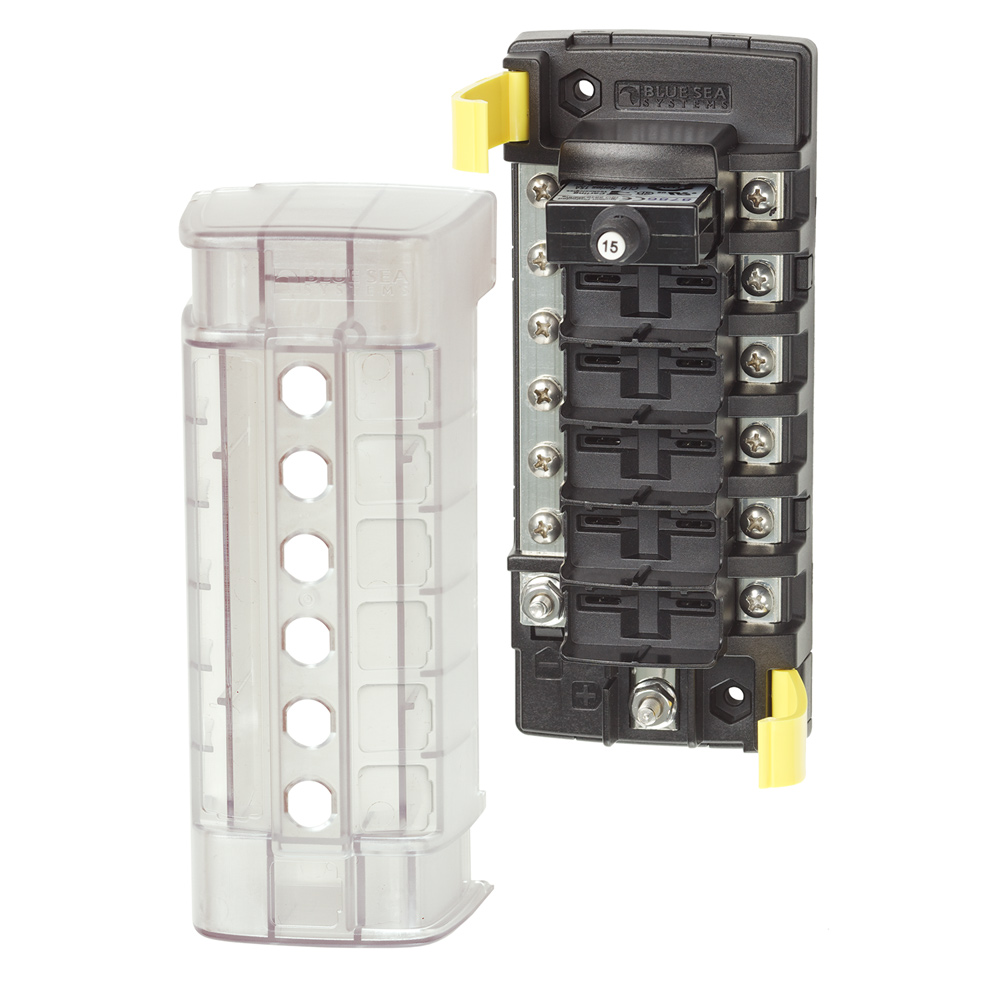

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

5 Star Excellence award from Shopper Approved for collecting at least 100 5 star reviews

Sale Price: $64.98
Retail Price:$94.99
Your Savings:$30.01(32%)
Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Manufacturer Part Number: : CW51811
Availability: In Stock
Quantity in Stock: 12

Manufacturer: Blue Sea Systems
Manufacturer Part Number: 5052
UPC: 632085050528
Condition: New
Shipping Time: Ships in 1-2 Business Days
Shipping Price: $9.99 Flat Rate For Anything in Your Cart!
Return Policy: 20 Day No Hassle Returns

Customer Reviews

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
